Door Unit Construction

When a door is needed for remodeling or new construction, door unit configuration and handing are two important aspects that need to be determined.
Door Unit Configuration and Construction
The first configuration decision is choosing a single or double door. Single doors are most common for entryways. Double doors have twice the opening size but are not as secure.
Single Exterior Door Unit
Single Door Unit
Double Exterior Door Unit
Double Door Unit
The next configuration decision is a complementary component such as a sidelite (a small panel with glass that sits next to the door) or a transom (a glass accent fixture that sits above the door). A sidelite can be added to either or both sides of a single door. A transom can be placed over a single door, double door, or unit with sidelites to bring more natural light into the home. For larger openings, a single door with two sidelites is a good option as a double door is not as weathertight.
Exterior Door Components
Single Door with One Sidelite on Left
Single Door w/ Sidelite on Left
Single Door with One Sidelite on Right
Single Door w/ Sidelite on Right
Single Door with Two Sidelites
Single Door w/ Two Sidelites
Single Door Unit
Single Door Unit w/ Transom
Single with Transom and One Sidelite on Left
Single w/ Transom and Left Sidelite
Single with Transom and One Sidelite on Right
Single w/ Transom and Right Sidelite
Single with Transom and Two Sidelites
Single w/ Transom and Two Sidelites
Another consideration regarding the unit configuration is the rough opening (RO), the hole in which the door unit is placed. The standard size door is 3'0" (36") wide by 6'8" (80") tall and is the main component of the door unit. In the industry it is known as a 3068 door. The door unit, though, consists of the door, the frame around the door, and the sill underneath the door. The rough opening for a standard complete single door unit is 38½" by 82½". An additional 2½" is added to the width and height to account for all door unit components and allow space for shimming.
Door Framing Rough Opening
Single Door
Single Door
Single Door Rough Opening
Single Door R.O.

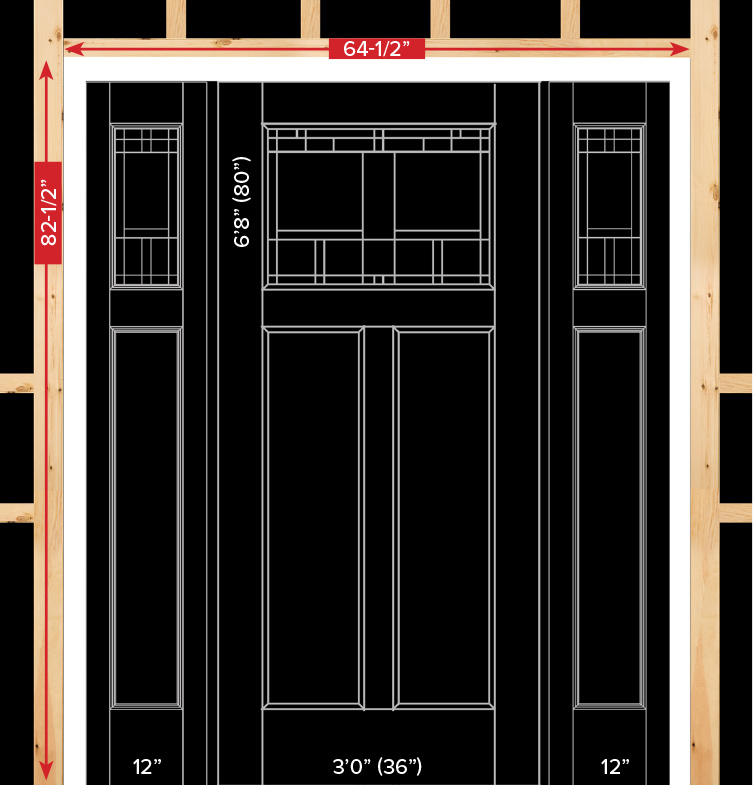

Adding a sidelite to a unit will increase the rough opening width, not only due to the sidelite but also due to the addition of a mullpost between the door and sidelite. A standard door unit with sidelites is constructed by using one head jamb and one sill, called a continuous head and sill unit. A common configuration includes using a 3'0" wide door with two 12" sidelites. The rough opening necessary will now increase to the addition of two 12" sidelites and two 1" mullposts, adding 26". Therefore, the rough opening for a single door with two 12" sidelites is 64½" by 82½".
Rough Opening Sidelite Unit
Single Door w/ 2 Sidelites R.O.

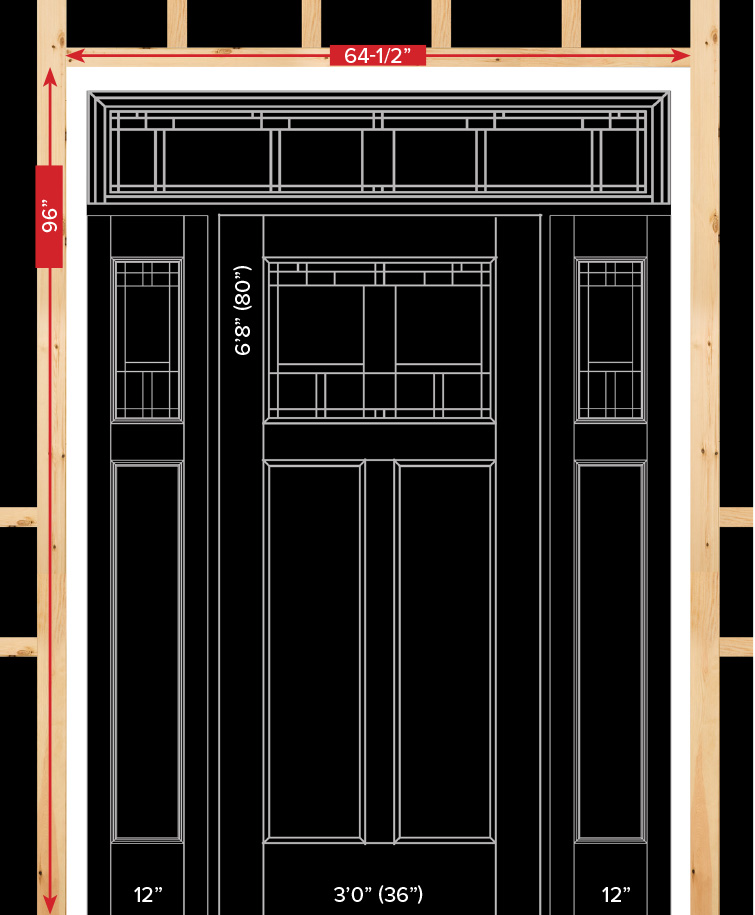

Adding a transom to a unit increases the rough opening height. The glass in a rectangular transom, coupled with the frame around the transom, will add 13½" to the rough opening. A single door with two 12" sidelites and a rectangular transom will have a rough opening of 64½" by 96".
Rough Opening Sidelite and Transom
Single Door w/ 2 Sidelites and Transom R.O.
At times, the existing rough opening in the home is larger than a standard opening, typically found in older homes. For these occurrences, there is an option to increase the size of the unit by using a boxed construction also known as spread mulls. This method of construction will add extra space between the sidelites and the door allowing the unit to better fit the larger rough opening. If the existing rough opening is shorter than 6'8", it is also possible to cut down the door in height.
Continous Sill Construction Type
Continuous with FrameSaver® Composite Bottom Frame
Boxed Unit Construction Type
Boxed with FrameSaver® Composite Bottom Frame and Spacers
The image of the boxed unit shows a spread mull with a split sill. Boxed units can also be constructed with no visible split by either using a continuous sill or by adding a nosing to the end of a split sill to give the appearance of one continuous sill.
The handing of the door refers to the swing of the door as well as left or right hand. There are two types of swings: inswing and outswing. If the door swings into the home, it is considered an inswing unit. If the door swings out of the home, it is considered an outswing unit.
Inswing Exterior Door Unit
Outswing Exterior Door Unit
Next it must be determined if the door unit is left or right hand. Imagine the door is open and you are standing with your back to the hinges. If the open door is on your left, it is a left hand swing. If the open door is on your right, it is a right hand swing. This is true for both inswing or outswing.
Left Hand Inswing
Right Hand Inswing
Left Hand Outswing
Right Hand Outswing
Finally, when choosing the handing for double doors, it is the swing of the active door, or the door that will be opened the majority of the time, that needs to be determined.
Left Hand Inswing
Right Hand Inswing
Left Hand Outswing
Right Hand Outswing

When a door is needed for remodeling or new construction, door unit configuration and handing are two important aspects that need to be determined.
The first configuration decision is choosing a single or double door. Single doors are most common for entryways. Double doors have twice the opening size but are not as secure.
Single Door Unit Double Door Unit
The next configuration decision is a complementary component such as a sidelite (a small panel with glass that sits next to the door) or a transom (a glass accent fixture that sits above the door).
A sidelite can be added to either or both sides of a single door. A transom can be placed over a single door, double door, or unit with sidelites to bring more natural light into the home.
For larger openings, a single door with two sidelites is a good option as a double door is not as weather tight.
Single Door with Sidelite on Left Single Door with Sidelite on Right Single Door with Two Sidelites Single Door Unit with Transom Single with Transom and Left Sidelite Single with Transom and Right Sidelite Single with Transom and Two Sidelites
Another consideration regarding the unit configuration is the rough opening (RO), the hole in which the door unit is placed.
The standard size door is 3'0" (36") wide by 6'8" (80") tall and is the main component of the door unit. In the industry it is known as a 3068 door.
The door unit, though, consists of the door, the frame around the door, and the sill underneath the door.
The rough opening for a standard complete single door unit is 38½" by 82½".
An additional 2½" is added to the width and height to account for all door unit components and allow space for shimming.
Single Door Single Door R.O.
If choosing to include sidelites in the configuration, this will increase the rough opening size needed.
A single 12" sidelite will increase the rough opening to 51½" x 82½".
Single Door with Sidelite R.O.
Including a rectangular transom above a single door with a sidelite will add 13½" to the unit height making the rough opening 51½" x 96" (a single door with one sidelite and a transom).
Single Door with Sidelite and Transom R.O.
A standard door unit with sidelites is constructed by using a single head piece and single sill, called the continuous method, to construct a unit to fit these common rough openings.
There are times though where the rough opening available in the home is larger. For these occurrences, there is an option to increase the size of the unit by using the boxed construction method.
This method of construction will allow for extra space to be added between the sidelites and the door to allow the door unit to fit the rough opening.
Continuous Sill Unit Boxed Unit
The handing of the door refers to the swing of the door as well as left or right hand.
There are two types of swings: inswing and outswing.
If the door swings into the home, it is considered an inswing unit.
If the door swings out of the home, it is considered an outswing unit.
Next it must be determined if the door unit is left or right hand.
Imagine the door is open and you are standing with your back to the hinges.
If the open door is on your left, it is a left hand swing. If the open door is on your right, it is a right hand swing.
This is true for both inswing or outswing.
Left Hand Inswing Right Hand Inswing Left Hand Outswing Right Hand Outswing
Finally, when choosing the handing for double doors, it is the swing of the active door, or the door that will be opened the majority of the time, that needs to be determined.
Left Hand Inswing Right Hand Inswing Left Hand Outswing Right Hand Outswing
